Longitudinal Seam Welding Machines | High-Precision
Straight line welding machine special argon arc two protection welding straight line welding machine straight seam welding table
直缝焊接专机

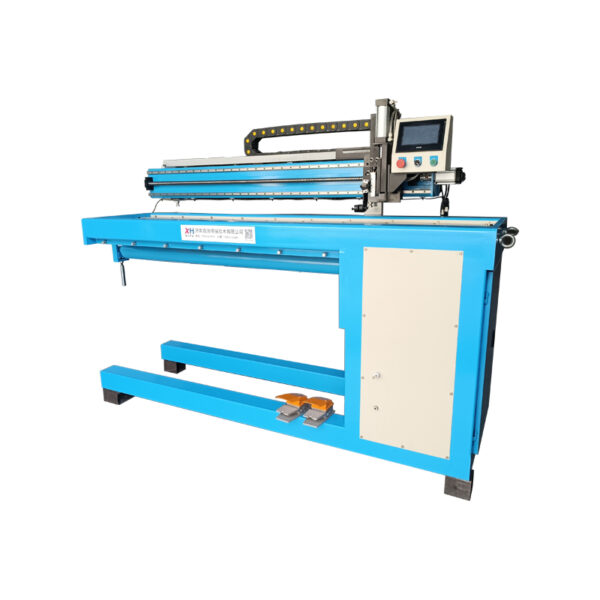

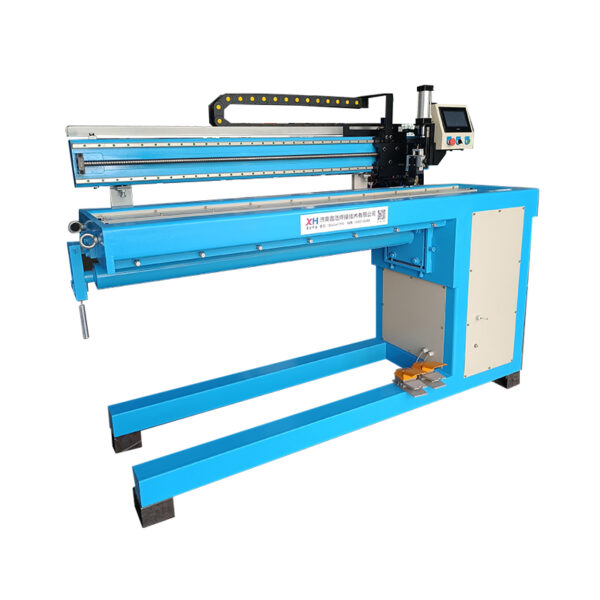

Straight seam welding machine
◆ Straight seam automatic welding is used for the welding of cylinder straight seam and flat splice straight seam; Applicable welding parts range: mainly used in aluminum, carbon steel, stainless steel materials; Plate butt, thick plate V-shaped groove, single-side welding (can be formed on both sides), small welding deformation, neat weld, beautiful. The welding gun is driven by two dimensions, the workpiece is fixed, and the welding gun is moved to complete the welding.
◆ The main machine adopts cantilever structure, keyboard type pneumatic compression structure, closely arranged along both sides of the straight seam, to ensure that the butt weld is evenly compressed within the whole welding length; The spacing of the pressure fingers of the left and right keys can be adjusted to suit the welding of different workpieces.
◆ Copper lifter is installed in the welding core shaft, which provides backair protection function when argon arc welding, and can achieve the welding effect of single-side welding and double-side forming.
◆ The walking mechanism adopts servo motor drive, PLC touch screen control system, easy to operate.
◆ Optional Otai WSM-400 argon arc welding machine, cooling water tank, argon arc welding gun, CNC wire feeding machine, for relatively thick workpiece to achieve automatic wire filling welding process.
| Model number | ZFH-500 | ZFH-800 | ZFH-1200 | ZFH-1500 | ZFH-2000 |
| Length of weldable parts | 500mm | 800mm | 1200mm | 1500mm | 2000mm |
| Minimum inside diameter of workpiece | 80mm | 120mm | 150mm | 200mm | 200mm |
| Welder plate thickness | 0.3-5mm | ||||
| Head travel speed | 500-150mm/min | ||||
| Torch lift stroke | 100 | ||||
| Fine stroke of welding gun | Y-100、Z=100 | ||||
产品细节
Product details
PLC control
Using CNC touch screen, material safety clearance.
User-friendly operation interface, easy to use good operation!
Servo motor
Dc servo motor drive, rack and pinion drive,
The track surface is grinded and welded steadily
Welding fixture
The welding jig firmly holds the welding gun, prevents the welding gun from shaking and can be matched
Linear/pendulum oscillators are effective while completing welding tasks and can be welded
Welding with carbon steel, stainless steel, carbon alloy, aluminum alloy and other materials
产品解析
Product analysis
现场实拍
Live shooting
